WAKE UP YOUR SENSES WHILE STEALING GLANCES.

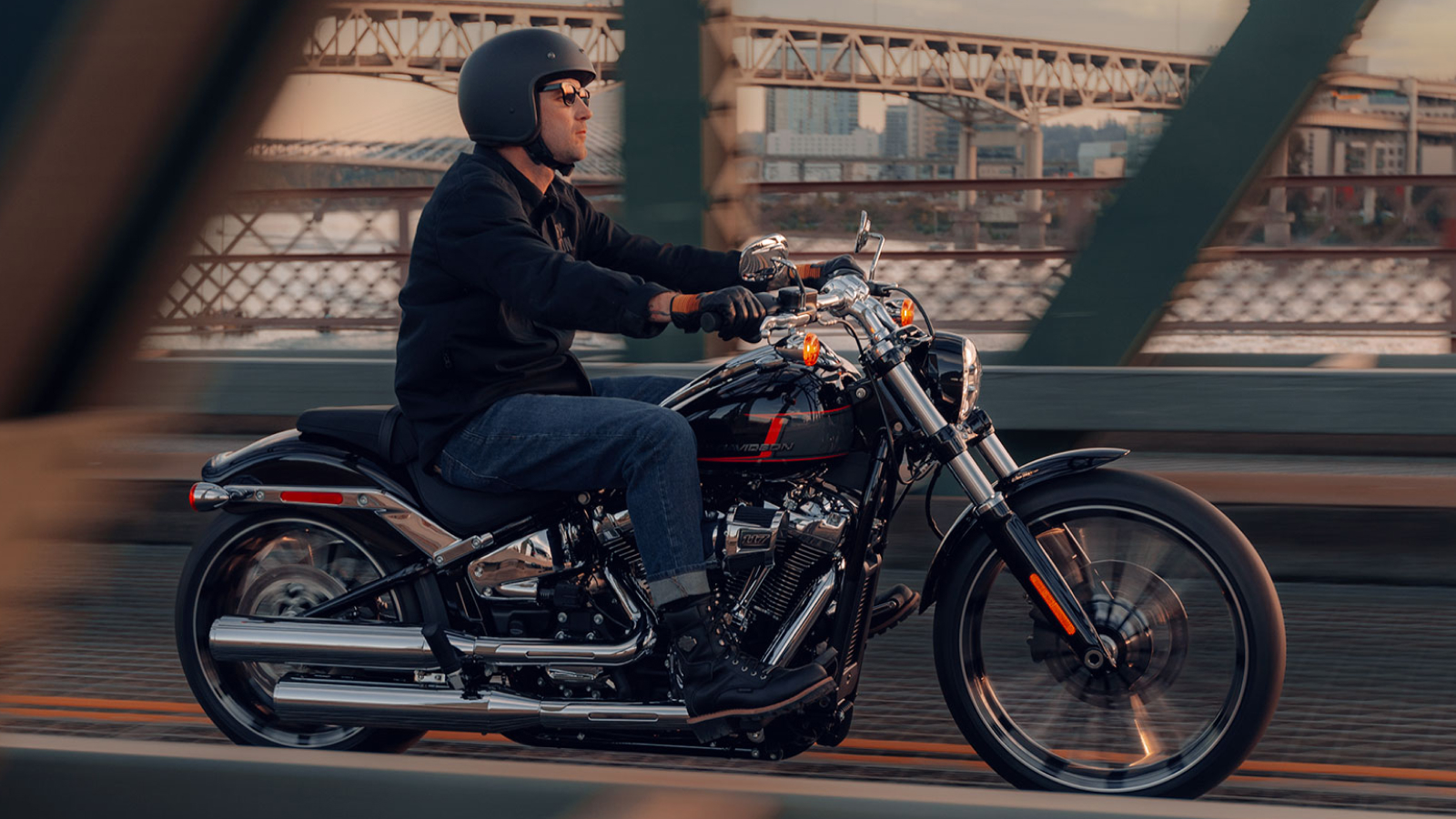

Dripping with chrome, the Harley-Davidson Breakout 117 is a raked-out cruiser that packs Milwaukee-Eigh 117 V-Twin muscle.
Stretched riding position
Forward foot controls
Passenger seat
Low
Rider safety enhancements available
LENGTH | 2,370 mm |
SEAT HEIGHT, UNLADEN | 665 mm |
GROUND CLEARANCE | 115 mm |
RAKE | 34 |
TRAIL | 145 mm |
WHEELBASE | 1,695 mm |
TYRES, TYPE | Michelin™ Scorcher 11, front and rear |
TYRES, FRONT SPECIFICATION | 130/60B21,63H,BW |
TYRES, REAR SPECIFICATION | 240/40R18,79V,BW |
FUEL CAPACITY | 18.9L |
OIL CAPACITY (W/FILTER) | 4.7L |
WEIGHT, AS SHIPPED | 296 kg |
WEIGHT, IN RUNNING ORDER | 310 kg |
Engine | Milwaukee-Eight™ 117 |
Bore | 103.5 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,923 cc |
COMPRESSION RATIO | 10.2:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-into-2 staggered; catalyst in muffler |
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE\xA03 | 167 Nm |
ENGINE TORQUE (RPM) | 3500 |
HORSEPOWER | 102 HP / 76 kW @ 5020 rpm |
LEAN ANGLE, RIGHT (DEG.) | 26.8 |
LEAN ANGLE, LEFT (DEG.) | 26.8 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 5.6 l/100 km |
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.311 |
GEAR RATIOS (OVERALL) 2ND | 6.454 |
GEAR RATIOS (OVERALL) 3RD | 4.793 |
GEAR RATIOS (OVERALL) 4TH | 3.882 |
GEAR RATIOS (OVERALL) 5TH | 3.307 |
GEAR RATIOS (OVERALL) 6TH | 2.79 |
FRONT FORK | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring |
REAR SHOCKS | Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment |
WHEELS, FRONT TYPE | Gloss black, 26-spoke cast aluminum |
WHEELS, REAR TYPE | Gloss black, 26-spoke cast aluminum |
BRAKES, CALIPER TYPE | 4-piston fixed front and 2-piston floating rear |
BRAKES, ROTOR TYPE | Front and rear black, Split 7-spoke floating rotors |
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | All LED, low beam, high beam and signature position lamp; Integrated, multi-function LED stop/tail/turn signals; Incandescent bullet turn signals; Integrated, multi-function LED stop/tail/turn signals |
GAUGES | 2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication |
ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
