ESCAPE FROM THE ORDINARY.

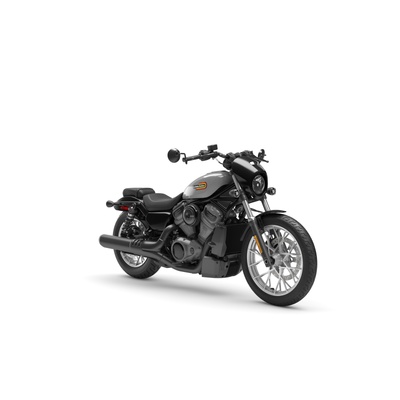

With modern function and traditional form, the Harley-Davidson Nightster Special has a liquid-cooled V-twin engine and a classic Sportster silhouette.
Upright riding position
Mid-mount foot controls
Passenger seat
Low
Screen
Rider safety enhancements available
LENGTH | 2,265 mm |
SEAT HEIGHT, UNLADEN | 715 mm |
GROUND CLEARANCE | 120 mm |
RAKE | 30 |
TRAIL | 137 mm |
WHEELBASE | 1,545 mm |
TYRES, TYPE | Dunlop™ Harley-Davidson Series Bias Blackwall |
TYRES, FRONT SPECIFICATION | 100/90-19 57H |
TYRES, REAR SPECIFICATION | 150/80B16 77H |
FUEL CAPACITY | 11.7L |
OIL CAPACITY (W/FILTER) | 4.5L |
WEIGHT, AS SHIPPED | 216 kg |
WEIGHT, IN RUNNING ORDER | 225 kg |
Engine | Revolution™ Max 975T |
Bore | 97 mm |
STROKE | 66 mm |
DISPLACEMENT | 975 cc |
COMPRESSION RATIO | 12:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-into-1; catalyst in header |
ENGINE TORQUE TESTING METHOD | J1349 |
ENGINE TORQUE\xA03 | 97 Nm |
ENGINE TORQUE (RPM) | 5750 |
HORSEPOWER | 91 HP / 68 kW @ 7500 rpm |
LEAN ANGLE, RIGHT (DEG.) | 32 |
LEAN ANGLE, LEFT (DEG.) | 32 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 5.5 l/100 km |
PRIMARY DRIVE | Gear, 49/89 ratio |
GEAR RATIOS (OVERALL) 1ST | 12.21 |
GEAR RATIOS (OVERALL) 2ND | 9.022 |
GEAR RATIOS (OVERALL) 3RD | 6.994 |
GEAR RATIOS (OVERALL) 4TH | 5.641 |
GEAR RATIOS (OVERALL) 5TH | 4.731 |
GEAR RATIOS (OVERALL) 6TH | 4.131 |
FRONT FORK | 41 mm SHOWA™ Dual Bending Valve conventional forks. Aluminum fork triple clamps. |
REAR SHOCKS | Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment. |
WHEELS, FRONT TYPE | Aluminum cast, silver |
WHEELS, REAR TYPE | Aluminum cast, silver |
BRAKES, CALIPER TYPE | Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper |
BRAKES, ROTOR TYPE | Front: single rotor, floating, hub - mounted; Rear: solid uniform expansion rotor |
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals |
GAUGES | 4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
SCREEN SIZE | 102 mm |
TYPE | Color TFT |
HEADSET SPECIFICATIONS (IF EQUIPPED) | Bluetooth |
LANGUAGES | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese |
HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
RIDER/PASSENGER INTERCOM | Headset function only |
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
USB | Charging and Instrument update, USB-C, 5V, 3A |
BLUETOOTH | Phone/Media Supported |
ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
