SEE THE UNSEEN.
Designed to meet the demands of both on- and off-road Adventure Touring, the Harley-Davidson Pan America 1250 Special is engineered to explore and endure, no matter what turns you take.
Upright riding position

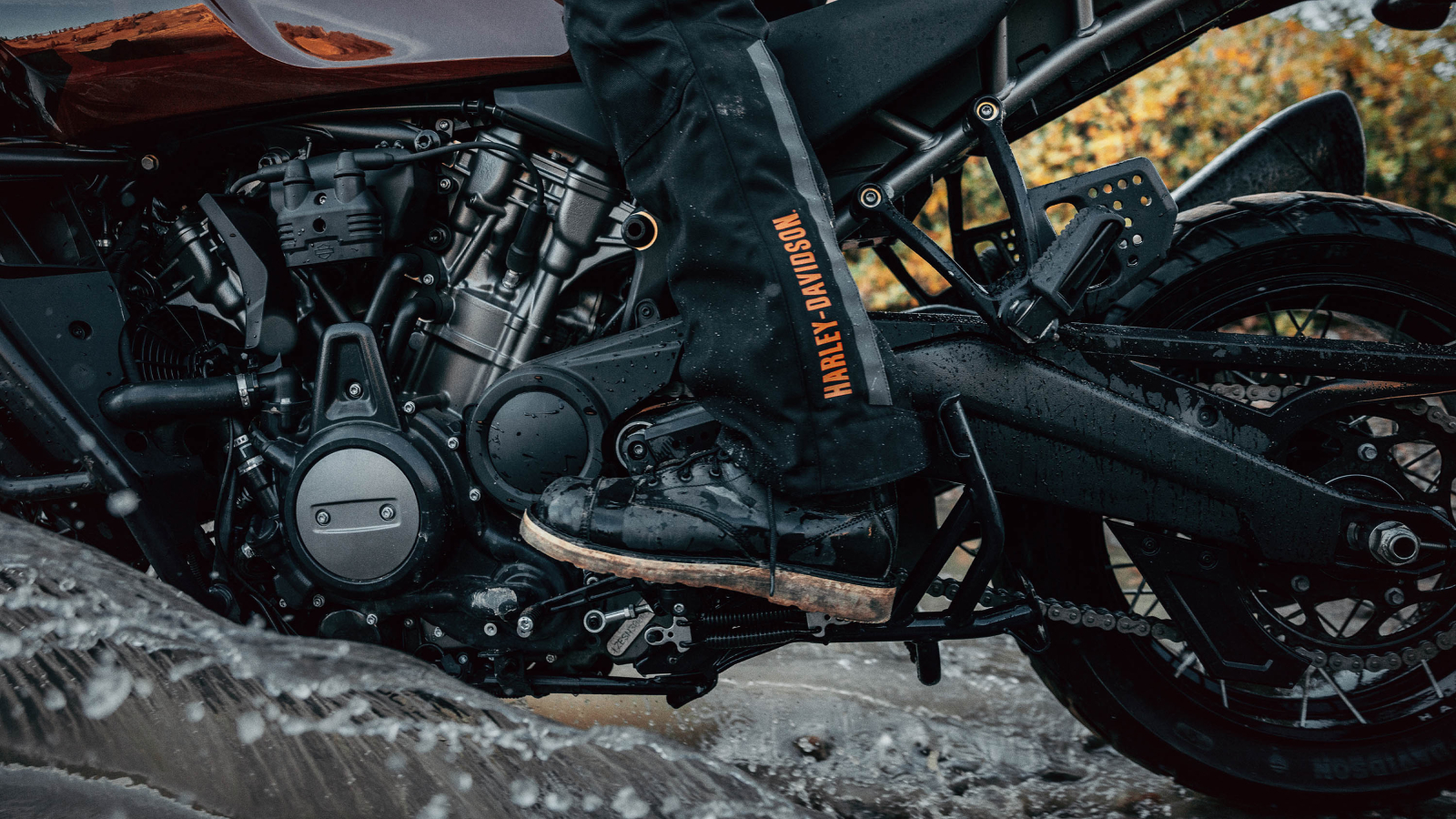

Mid-mount foot controls
Passenger seat
Tall
Frame mounted fairing
Rider safety enhancements standard
LENGTH | 2,270 mm |
SEAT HEIGHT, UNLADEN | low/high seat position; 850 mm/875 mm |
GROUND CLEARANCE | 175 mm |
RAKE | 25 |
TRAIL | 108 mm |
WHEELBASE | 1,585 mm |
TYRES, TYPE | Michelin™ Scorcher “Adventure”, Radial |
TYRES, FRONT SPECIFICATION | 120/70R19 60V |
TYRES, REAR SPECIFICATION | 170/60R17 72V |
FUEL CAPACITY | 21.2 l |
OIL CAPACITY (W/FILTER) | 4.5L |
WEIGHT, AS SHIPPED | 242 kg |
WEIGHT, IN RUNNING ORDER | 258 kg |
Engine | Revolution™ Max 1250 |
Bore | 105 mm |
STROKE | 72.3 mm |
DISPLACEMENT | 1,252 cc |
COMPRESSION RATIO | 13.0:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2-into-1-into-2; catalyst in muffler |
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE\xA03 | 124 Nm |
ENGINE TORQUE (RPM) | 6750 |
HORSEPOWER | 150 HP / 112 kW @ 8750 rpm |
LEAN ANGLE, RIGHT (DEG.) | 42 |
LEAN ANGLE, LEFT (DEG.) | 42 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 5.5 l/100 km |
PRIMARY DRIVE | Gear, 49/89 ratio |
GEAR RATIOS (OVERALL) 1ST | 13.11 |
GEAR RATIOS (OVERALL) 2ND | 9.687 |
GEAR RATIOS (OVERALL) 3RD | 7.509 |
GEAR RATIOS (OVERALL) 4TH | 6.057 |
GEAR RATIOS (OVERALL) 5TH | 5.08 |
GEAR RATIOS (OVERALL) 6TH | 4.436 |
FRONT FORK | 47 mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps |
REAR SHOCKS | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping |
WHEELS, OPTIONAL STYLE TYPE | Annodized aluminum tubeless laced |
WHEELS, FRONT TYPE | Aluminum cast, satin black |
WHEELS, REAR TYPE | Aluminum cast, satin black |
BRAKES, CALIPER TYPE | Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper |
BRAKES, ROTOR TYPE | Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor |
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | Daymaker Adaptive LED Headlamp with 6-segment LED banking lamp; All LED Tail/Stop lamp with signature tail lighting; LED bullet turn signals |
GAUGES | 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY) |
SCREEN SIZE | 173 mm |
TYPE | Color TFT w/ Touch |
HEADSET SPECIFICATIONS (IF EQUIPPED) | Bluetooth |
LANGUAGES | English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic |
HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
RIDER/PASSENGER INTERCOM | Headset function only |
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
USB | Charging and Instrument update, USB-C, 5V, 3A |
BLUETOOTH | Phone/Media Supported |
ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
ELECTRONIC LINKED BRAKING (ELB) | Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
VEHICLE HOLD CONTROL (VHC) | Included |
TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
WHEEL LIFT MITIGATION | Included |
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
ENHANCED LIFT MITIGATION | Included |
