EXPLORE NEW HORIZONS
The benchmark for long-distance touring bikes.
Upright riding position
Floorboards
Passenger seat
Saddlebags

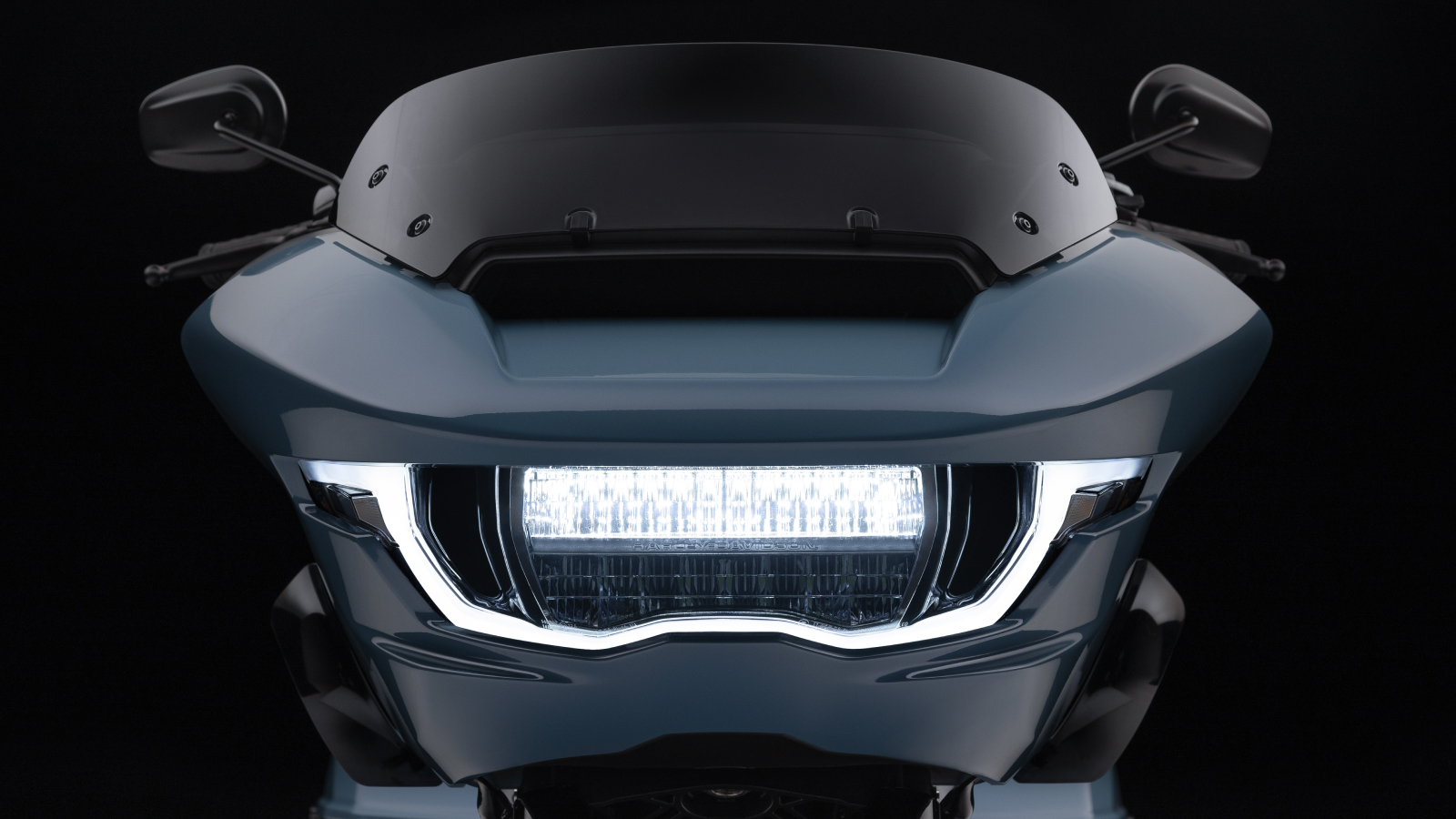

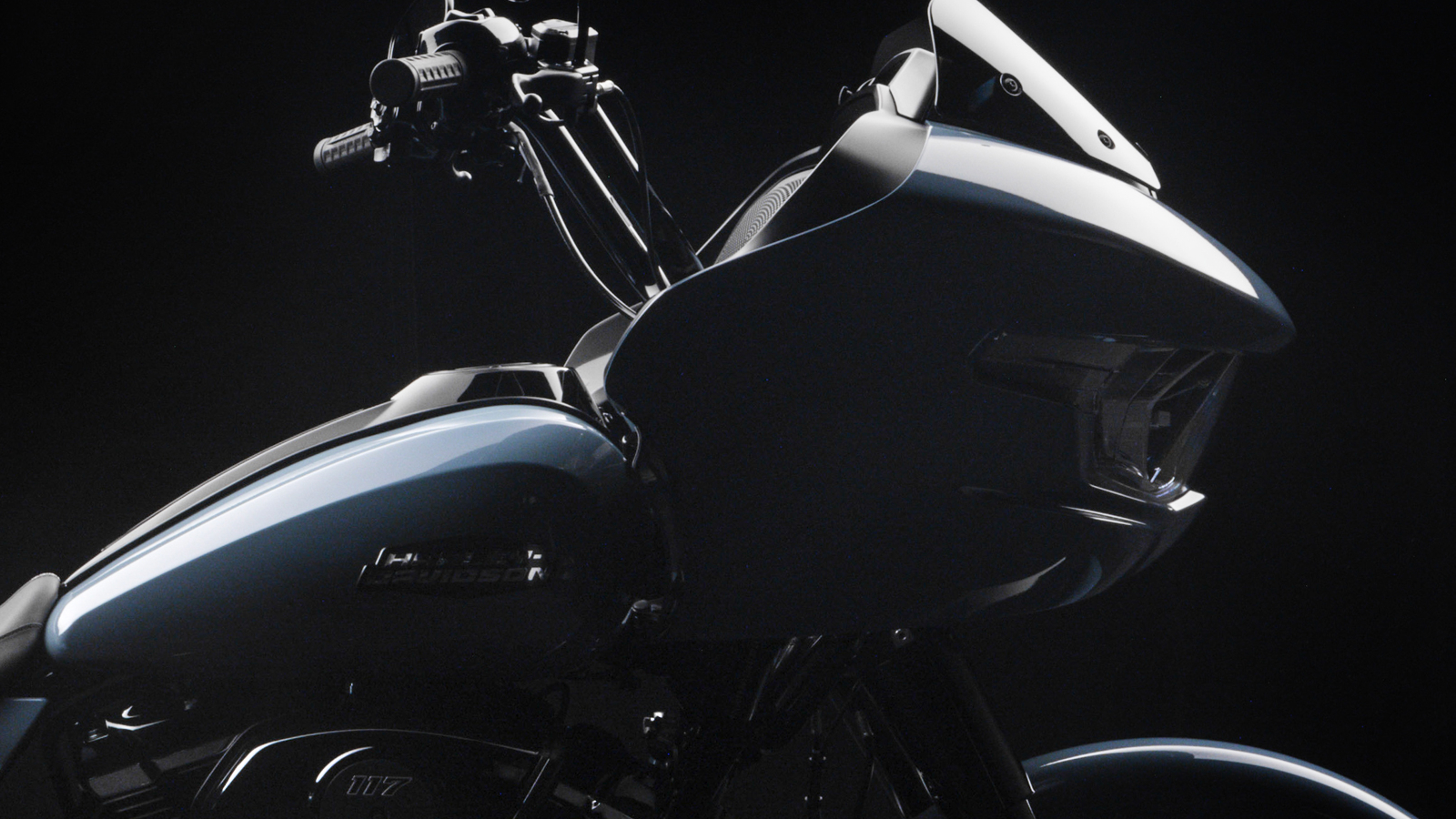

Frame mounted fairing
Infotainment
Rider safety enhancements available
LENGTH | 2,410 mm |
SEAT HEIGHT, UNLADEN | 720 mm |
GROUND CLEARANCE | 145 mm |
RAKE | 26 |
TRAIL | 173 mm |
WHEELBASE | 1,625 mm |
TYRES, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
TYRES, FRONT SPECIFICATION | 130/60B19 M/C 61H |
TYRES, REAR SPECIFICATION | 180/55B18 M/C 80H |
FUEL CAPACITY | 22.7L |
OIL CAPACITY (W/FILTER) | 4.7L |
WEIGHT, AS SHIPPED | 364 kg |
WEIGHT, IN RUNNING ORDER | 380 kg |
LUGGAGE CAPACITY -VOLUME | 0.069 m3 |

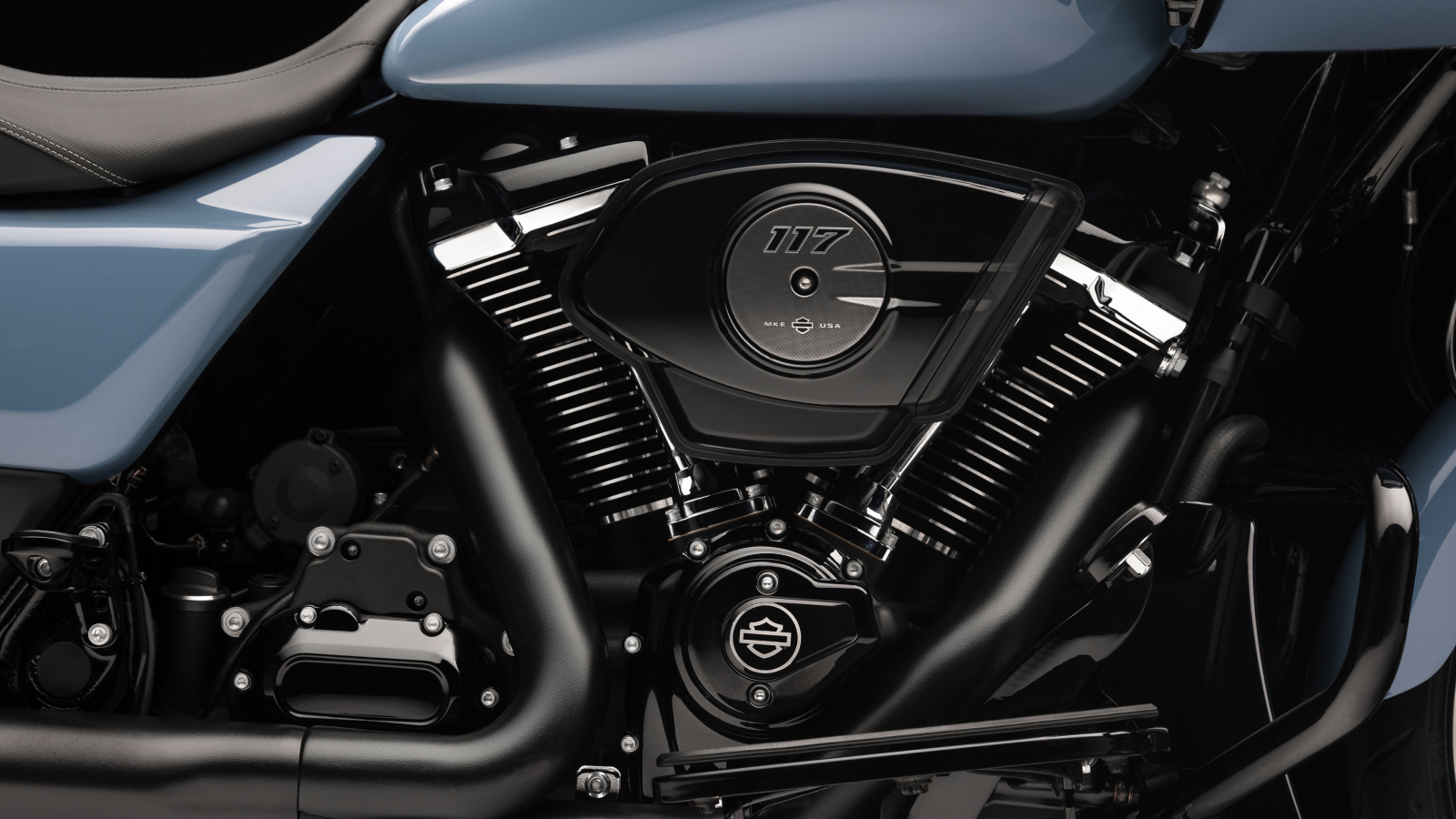

Engine | Milwaukee-Eight™ 117 |
Bore | 103.5 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,923 cc |
COMPRESSION RATIO | 10.3:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | Black, 2-1-2 dual exhaust with tapered mufflers |
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE\xA03 | 175 Nm |
ENGINE TORQUE (RPM) | 3500 |
HORSEPOWER | 107 HP / 80 kW @ 5020 rpm |
LEAN ANGLE, RIGHT (DEG.) | 32 |
LEAN ANGLE, LEFT (DEG.) | 32 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 6 l/100 km |
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.593 |
GEAR RATIOS (OVERALL) 2ND | 6.65 |
GEAR RATIOS (OVERALL) 3RD | 4.938 |
GEAR RATIOS (OVERALL) 4TH | 4 |
GEAR RATIOS (OVERALL) 5TH | 3.407 |
GEAR RATIOS (OVERALL) 6TH | 2.875 |
FRONT FORK | 49 mm Dual Bending Valve |
REAR SHOCKS | 76.2 mm Dual Outboard Emulsion with Preload Adjustability |

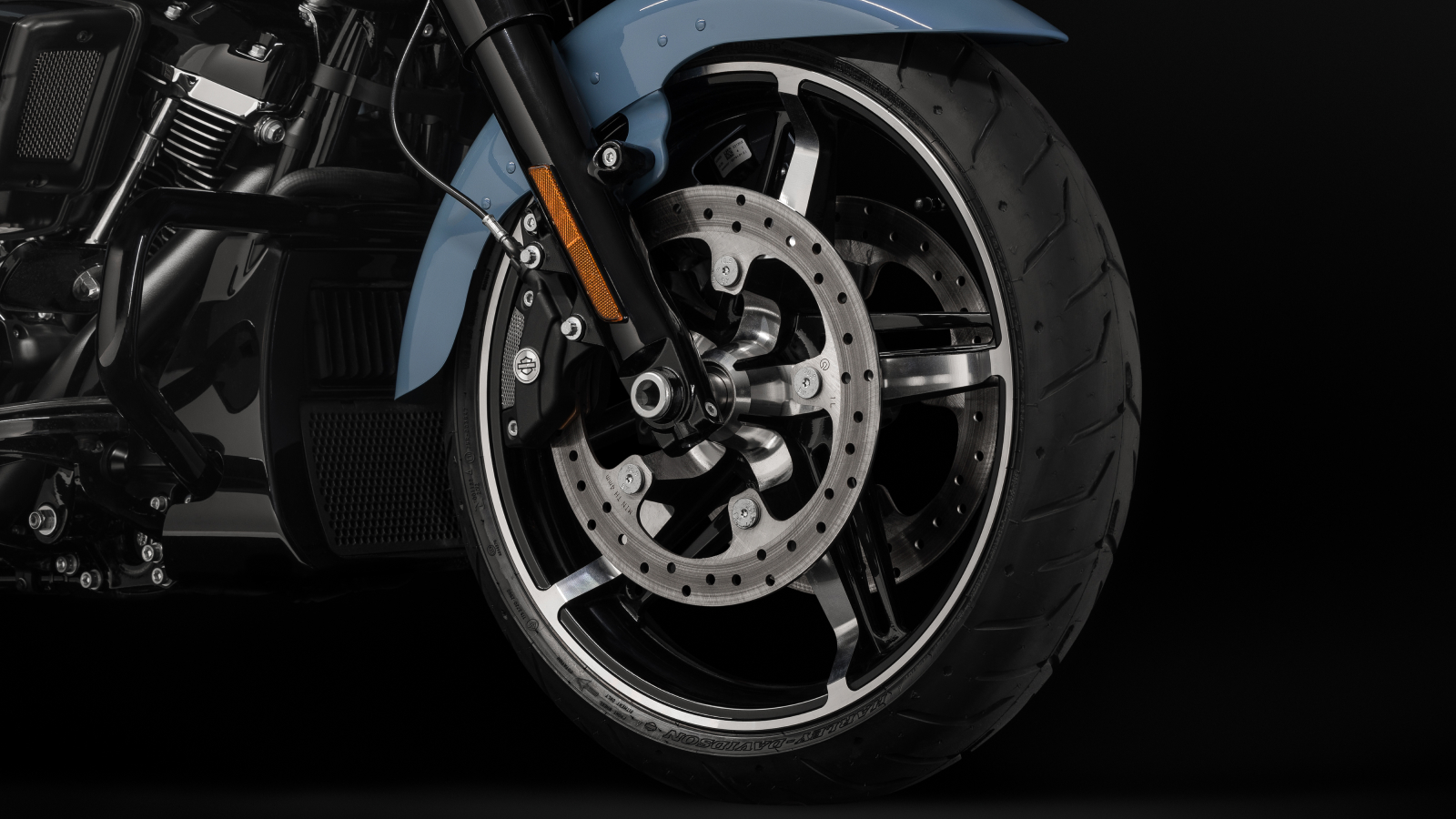

WHEELS, FRONT TYPE\xA04 | Cast aluminum |
WHEELS, REAR TYPE\xA04 | Cast aluminum |
BRAKES, CALIPER TYPE | 32 mm, 4-piston fixed dual axially mounted front, and single axially mounted rear |
BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |

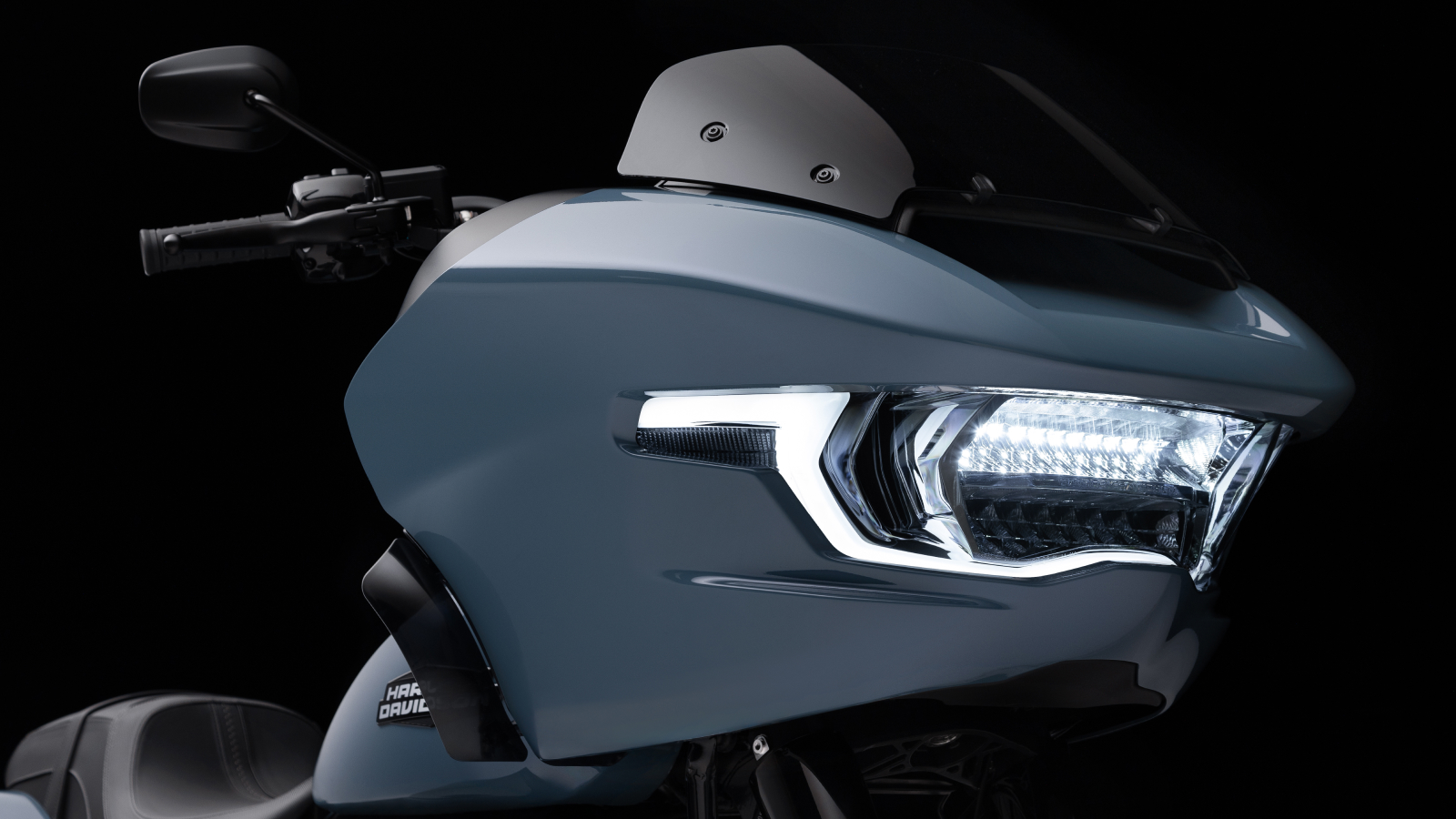

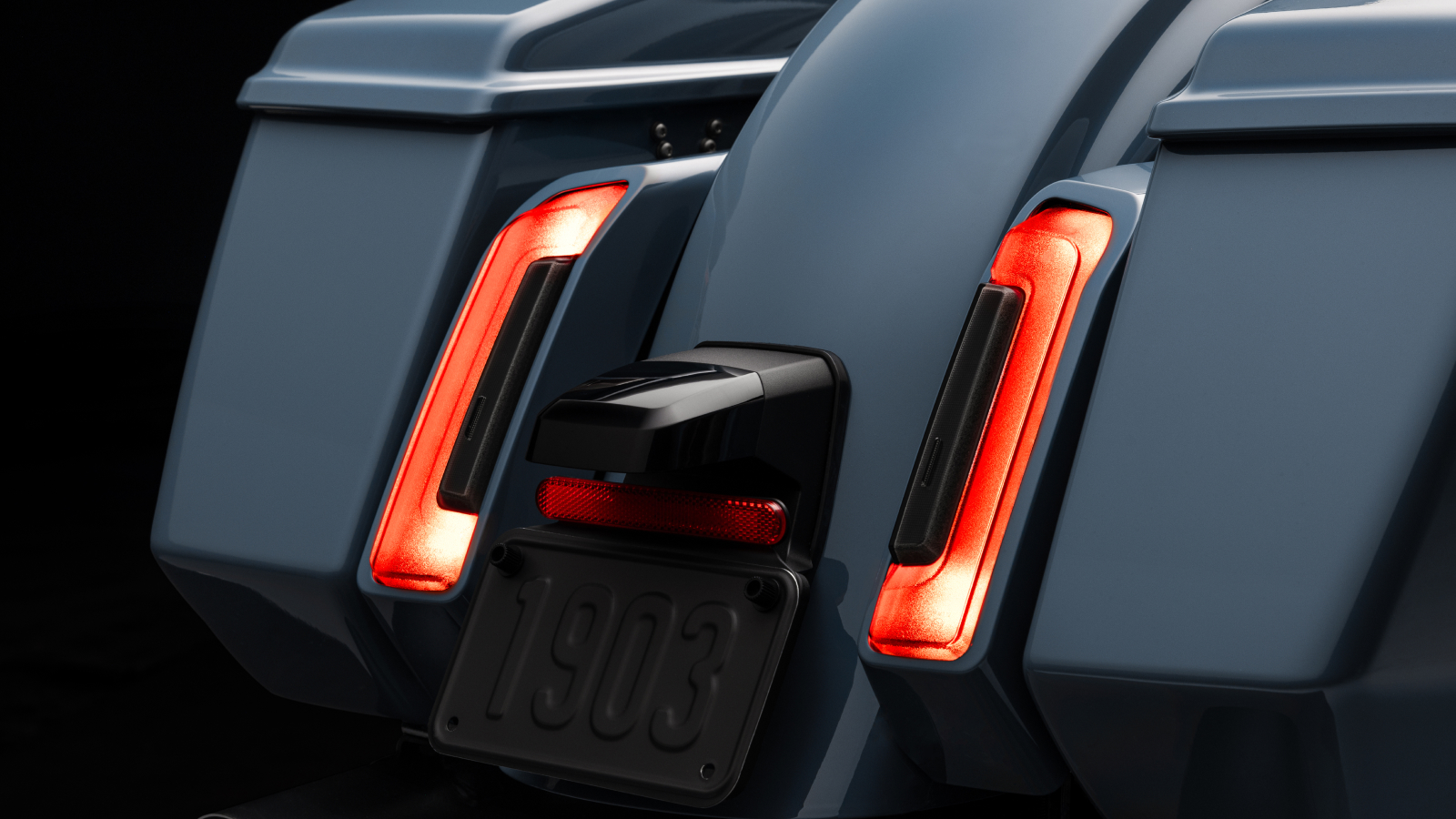

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | LED headlamp, tail/stop, front signal lights and rear turn signals |
GAUGES | Digital gauges integrated within the display |

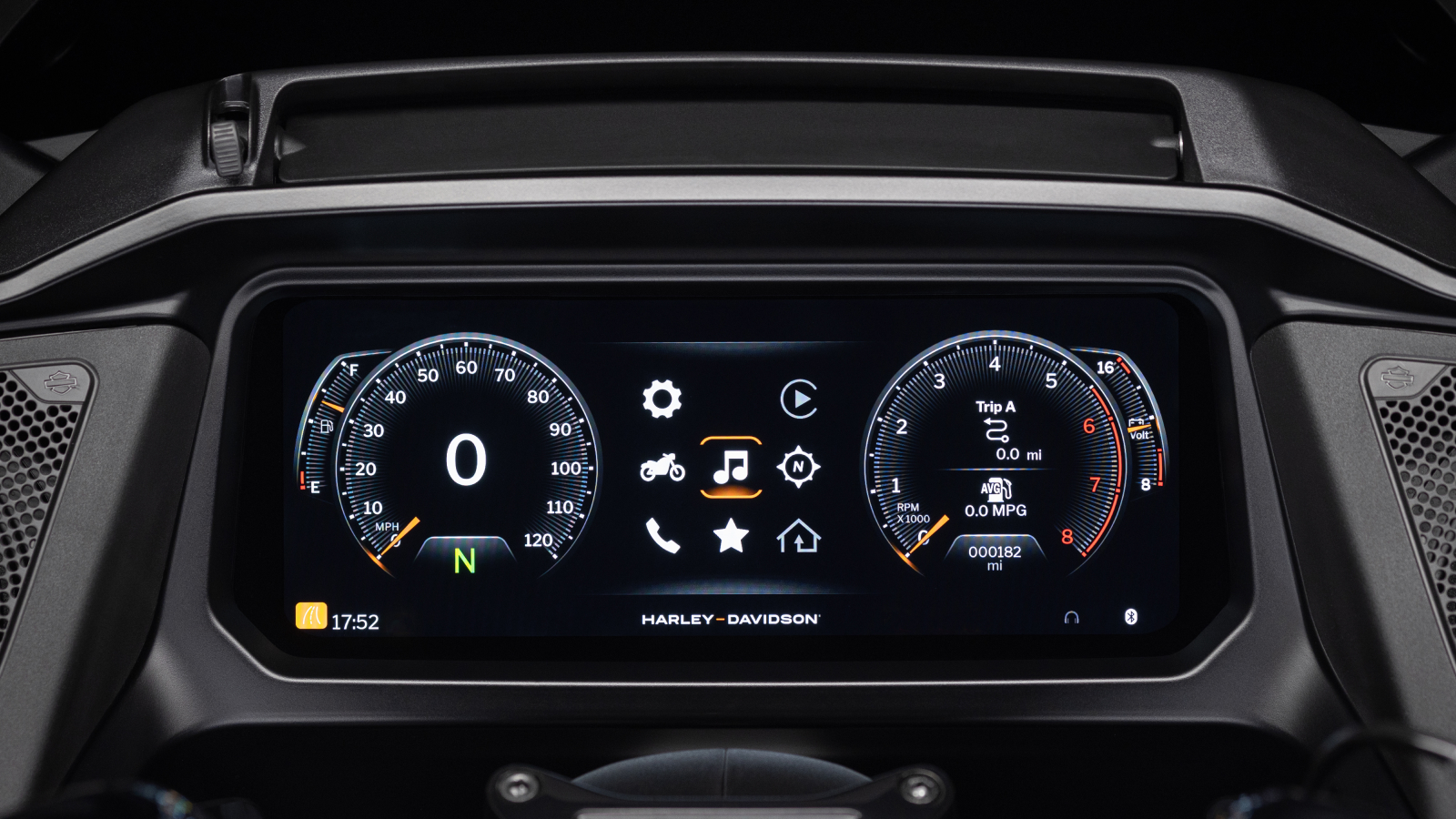

INFOTAINMENT SYSTEM | Skyline™ OS |

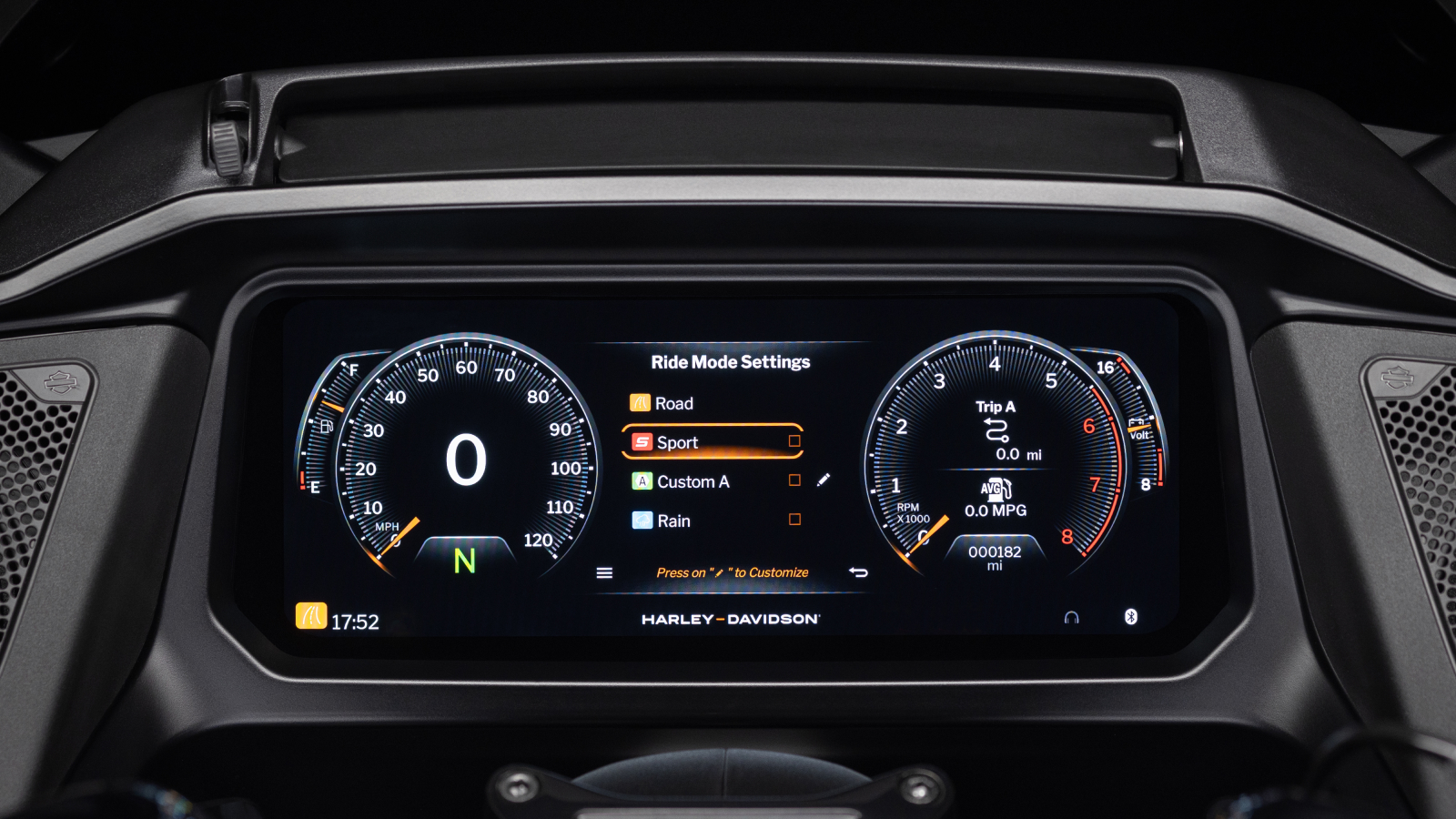

SCREEN SIZE | 312 mm |
TYPE | Full Color TFT |
WATTS PER CHANNEL | 50 |
SPEAKERS | 2 |

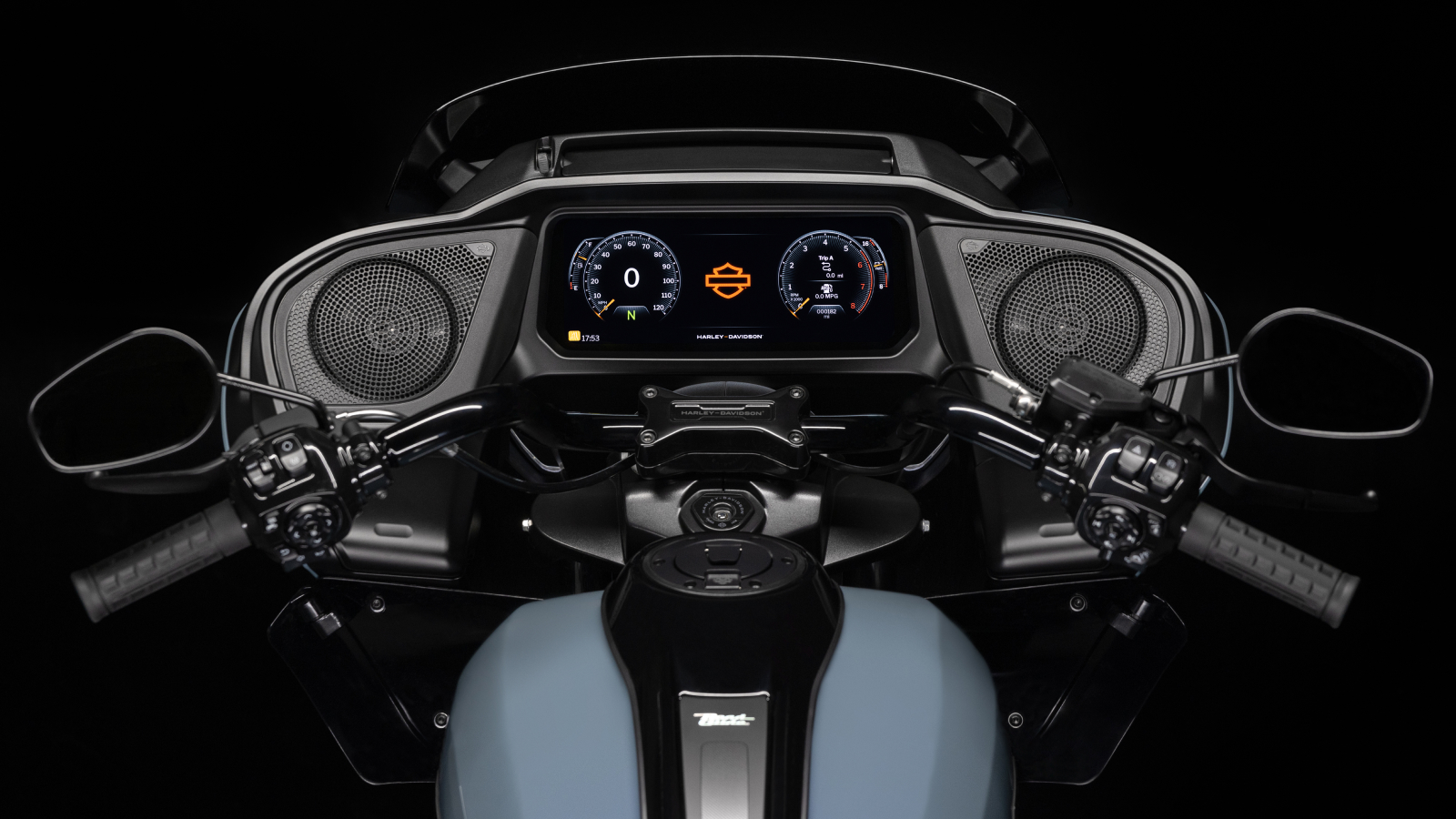

SPEAKER SIZE | Two 5.25 in. fairing speakers |
AM | Standard |
FM | Standard |
SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION | Supported |
LANGUAGES | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Embeded on Vehicle |
RIDER/PASSENGER INTERCOM | Standard (passenger headset sold separately), VOX is available for HD headsets |
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | Standard |
TEXT-TO-SPEECH (TTS) LANGUAGES | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
USB | USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage. |
PHONE CONNECTIVITY | Apple CarPlay (wireless or wired) |
BLUETOOTH | Phone/Media Player, Headset |
ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
ELECTRONIC LINKED BRAKING (ELB) | Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
VEHICLE HOLD CONTROL (VHC) | Included |
TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
