DOMINANT STANCE. SHARKNOSE STYLE.

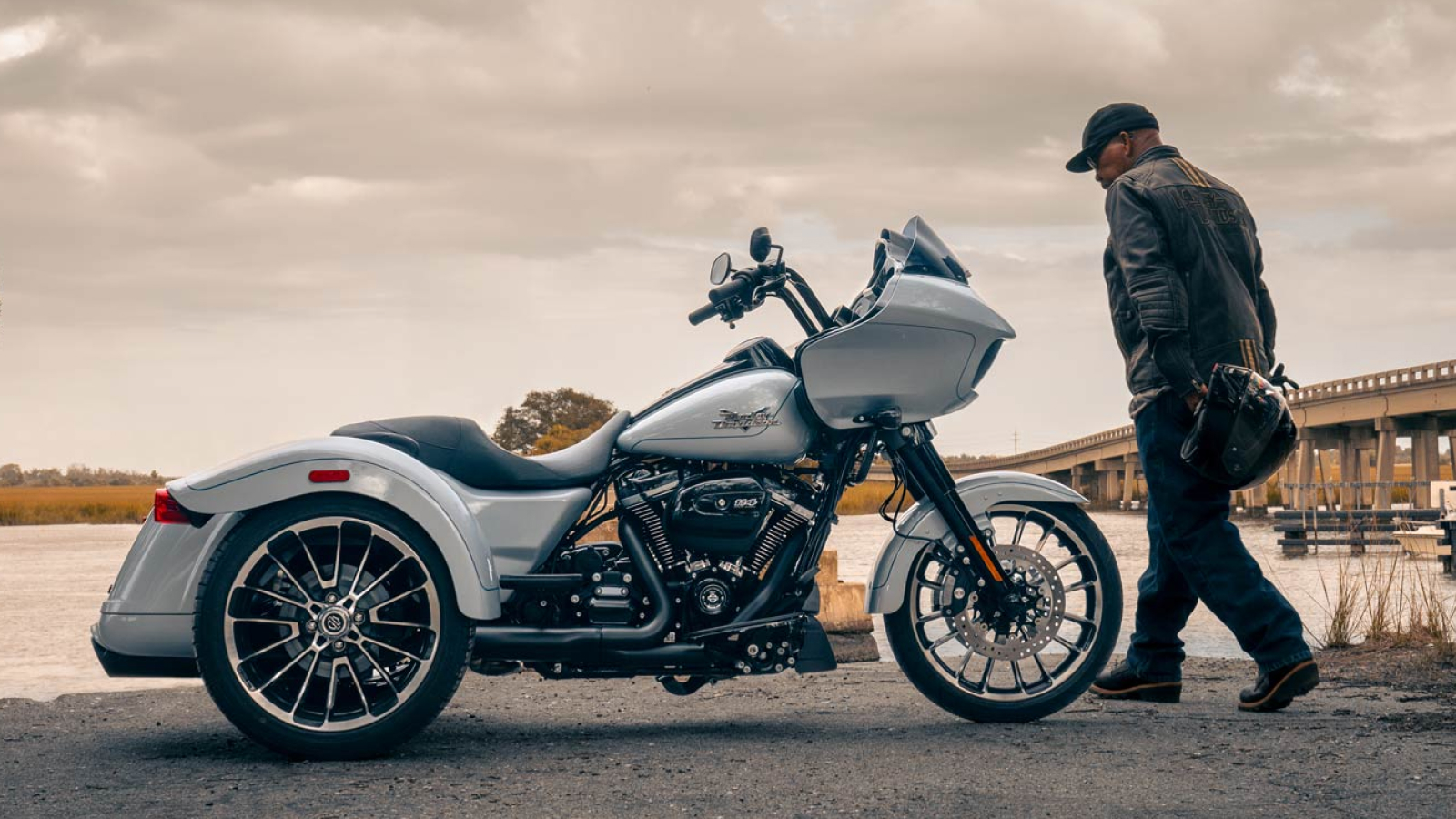

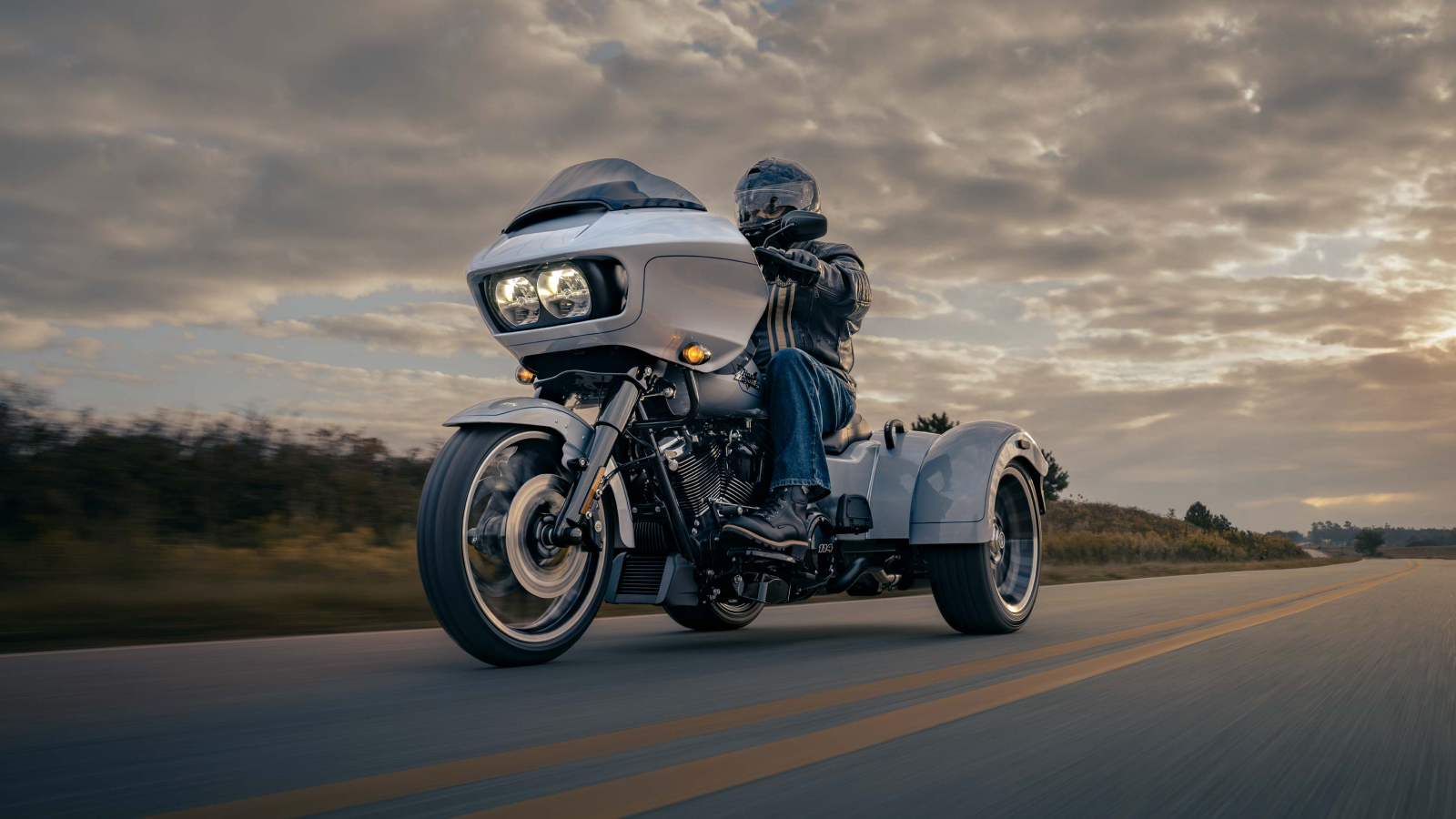

The Harley-Davidson Road Glide 3 combines the soul of a Road Glide with the comfort, convenience, and confidence of a three-wheeler.
Upright riding position
Floorboards
Passenger seat
Trunk
Frame mounted fairing
Rider safety enhancements available
LENGTH | 2,615 mm |
SEAT HEIGHT, UNLADEN | 700 mm |
GROUND CLEARANCE | 125 mm |
RAKE | 26 |
TRAIL | 101 mm |
WHEELBASE | 1,670 mm |
TYRES, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and radial blackwall rear |
TYRES, FRONT SPECIFICATION | MT 130/60B19 M/C 61H |
TYRES, REAR SPECIFICATION | P215/45R18 |
FUEL CAPACITY | 22.7L |
OIL CAPACITY (W/FILTER) | 4.7L |
WEIGHT, AS SHIPPED | 510 kg |
WEIGHT, IN RUNNING ORDER | 528 kg |
LUGGAGE CAPACITY -VOLUME | 0.06 m3 |

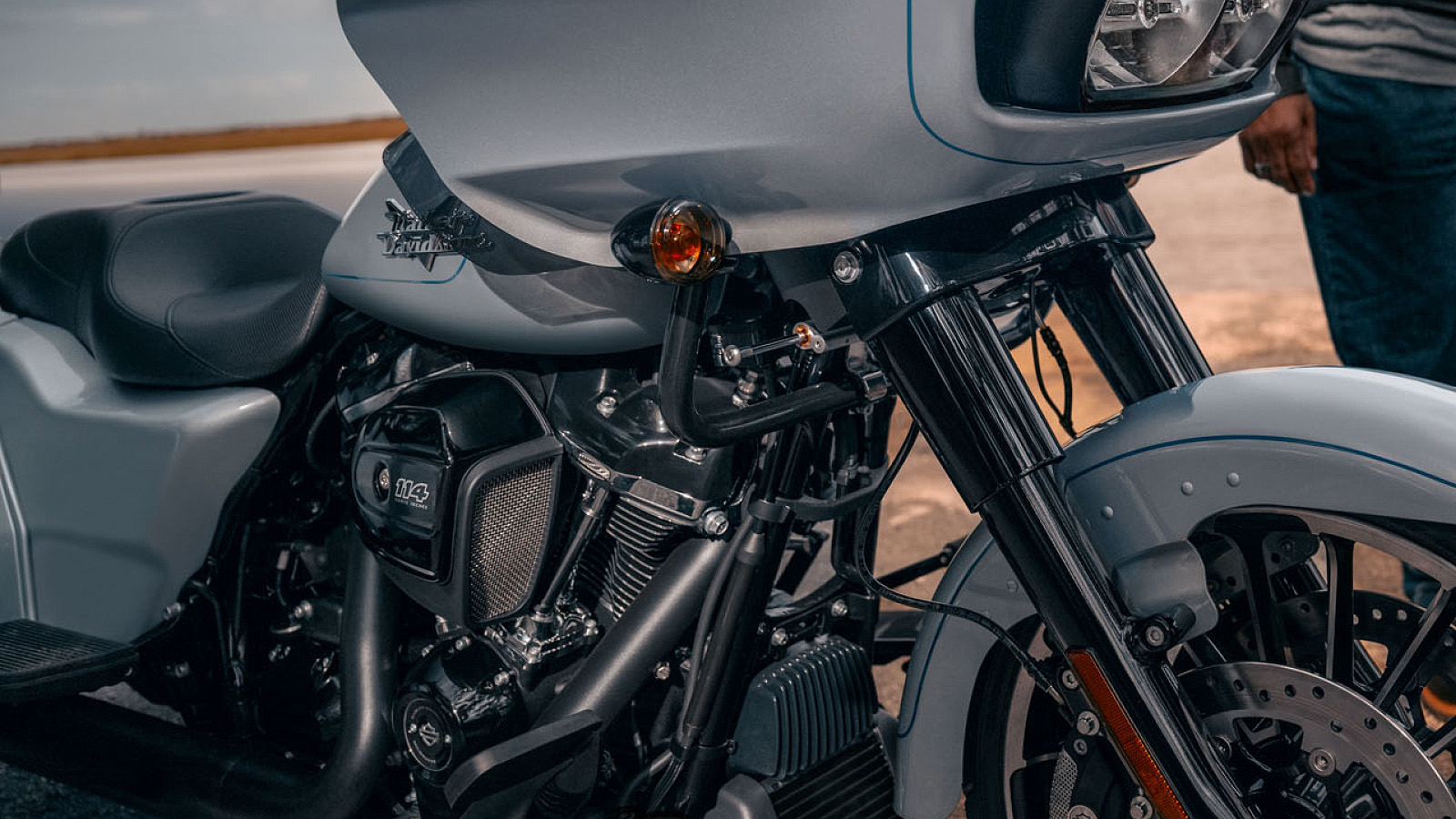

Engine | Twin-Cooled™ Milwaukee-Eight™ 114 |
Bore | 102 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,868 cc |
COMPRESSION RATIO | 10.5:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | Shorty slash down-style chrome finish mufflers |
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE\xA03 | 159 Nm |
ENGINE TORQUE (RPM) | 3000 |
HORSEPOWER | 87 HP / 65 kW @ 5020 rpm |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 6.5 l/100 km |
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 10.534 |
GEAR RATIOS (OVERALL) 2ND | 7.302 |
GEAR RATIOS (OVERALL) 3RD | 5.423 |
GEAR RATIOS (OVERALL) 4TH | 4.392 |
GEAR RATIOS (OVERALL) 5TH | 3.741 |
GEAR RATIOS (OVERALL) 6TH | 3.157 |
FRONT FORK | 49 mm Dual Bending Valve |
REAR SHOCKS | Hand-adjustable emulsion rear suspension |
WHEELS, FRONT TYPE | Cast aluminum |
WHEELS, REAR TYPE | Cast aluminum |
BRAKES, CALIPER TYPE | Front: 32 mm 4 piston fixed, Rear: floating 36mm piston integrated park brake |
BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |
LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS | LDual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; LED tail/stop, front signal lights and rear turn signals |

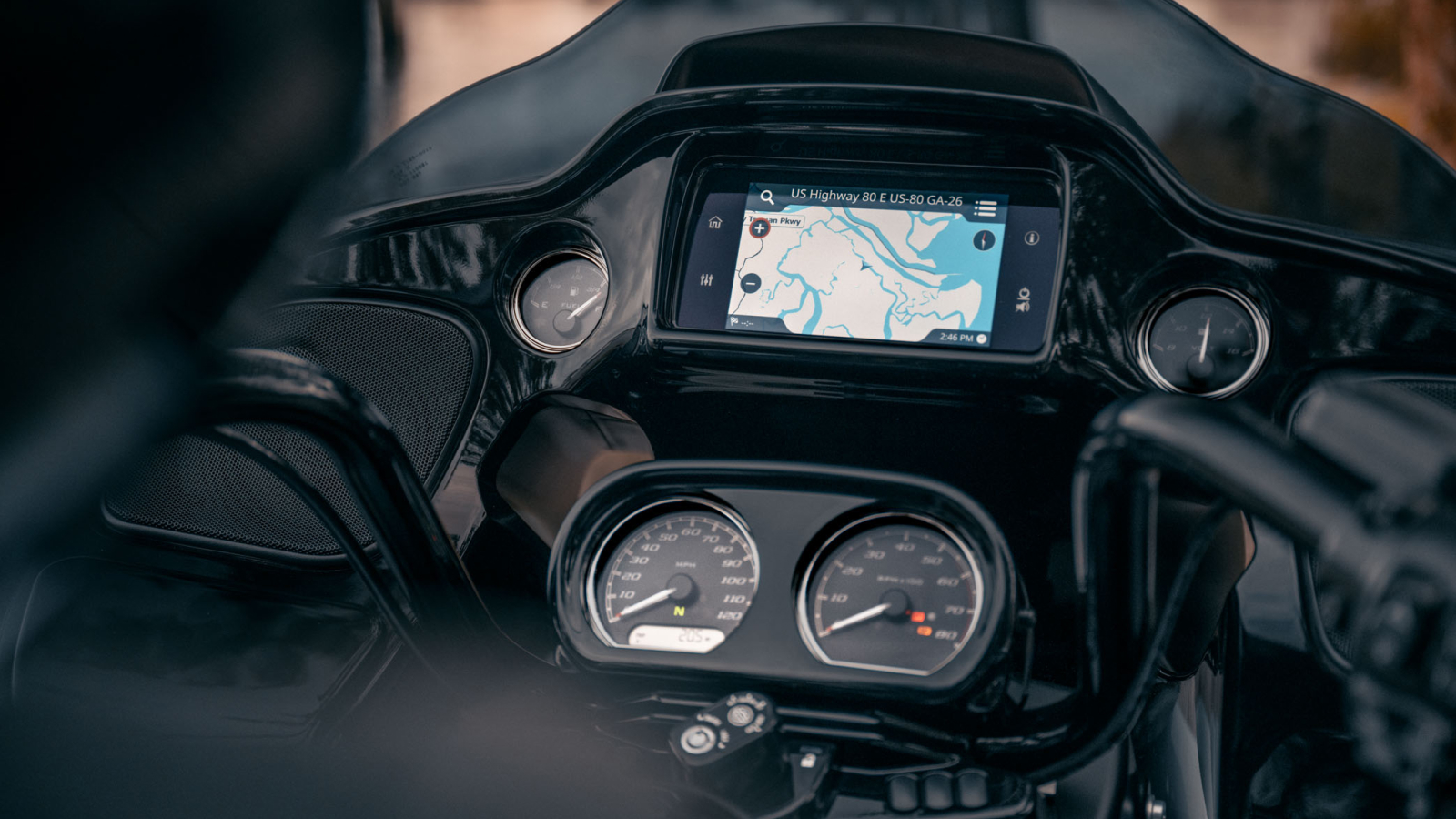

GAUGES | Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator |
INFOTAINMENT SYSTEM | Boom!™ Box GTS |
SCREEN SIZE | 165 mm |
TYPE | Full Color TFT |
WATTS PER CHANNEL | 25 |
SPEAKERS | 2 |
SPEAKER SIZE | 5.25 inch standard |
HEADSET SPECIFICATIONS (IF EQUIPPED) | 5.25 inch standard |
SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION | Supported |
LANGUAGES | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | Standard |
TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
USB | USB/MTP/iPod/iPhone |
BLUETOOTH | Phone/Media Supported |
ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
ELECTRONIC LINKED BRAKING (ELB) | Included |
TRACTION CONTROL SYSTEM (TCS) | Included |
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
