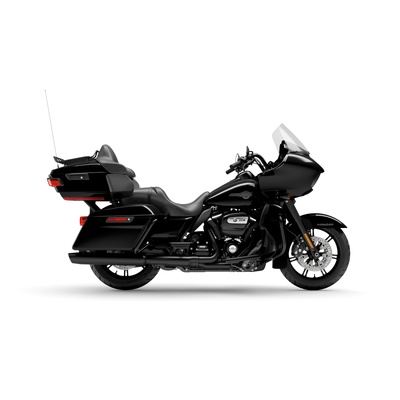

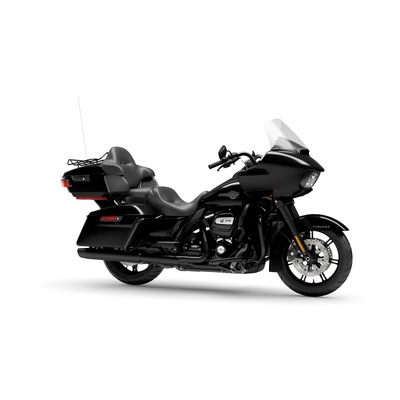

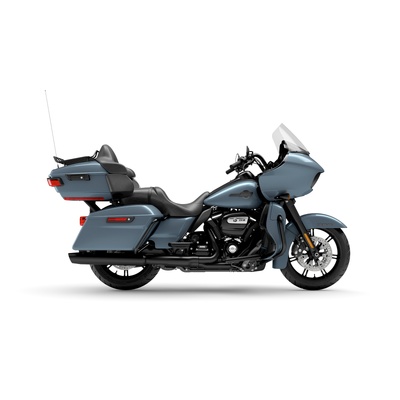

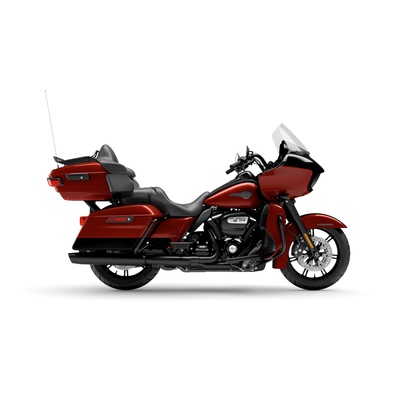

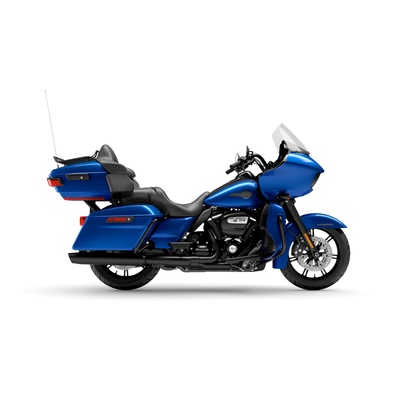

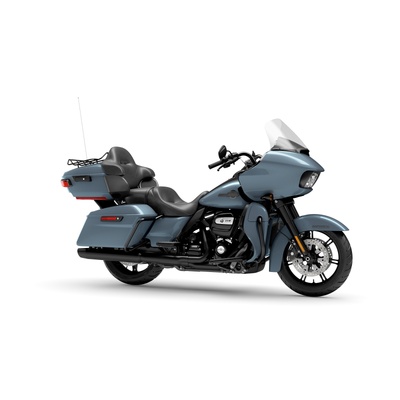

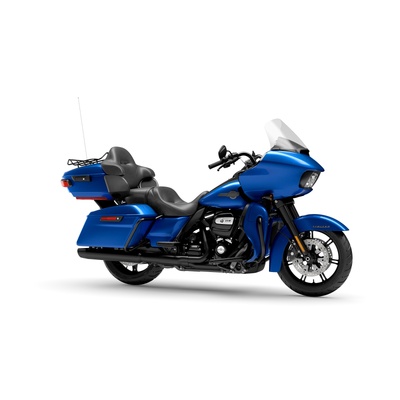

With incredible comfort and impressive style, the Harley-Davidson Road Glide Limited is a long-haul machine that will make you fall even more in love with Grand American Touring.
Upright riding position
Floorboards
Passenger seat with backrest

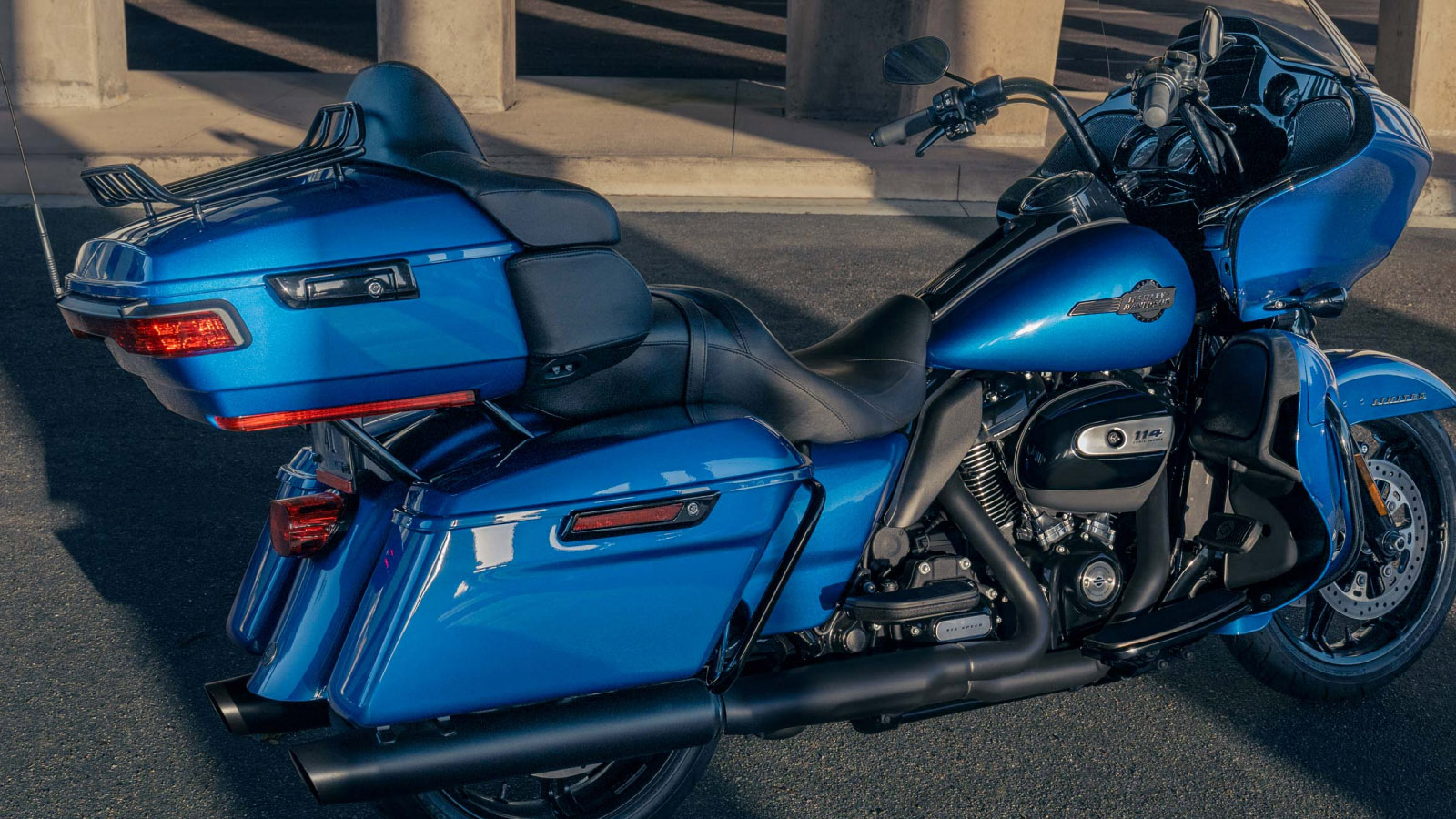

Saddlebags

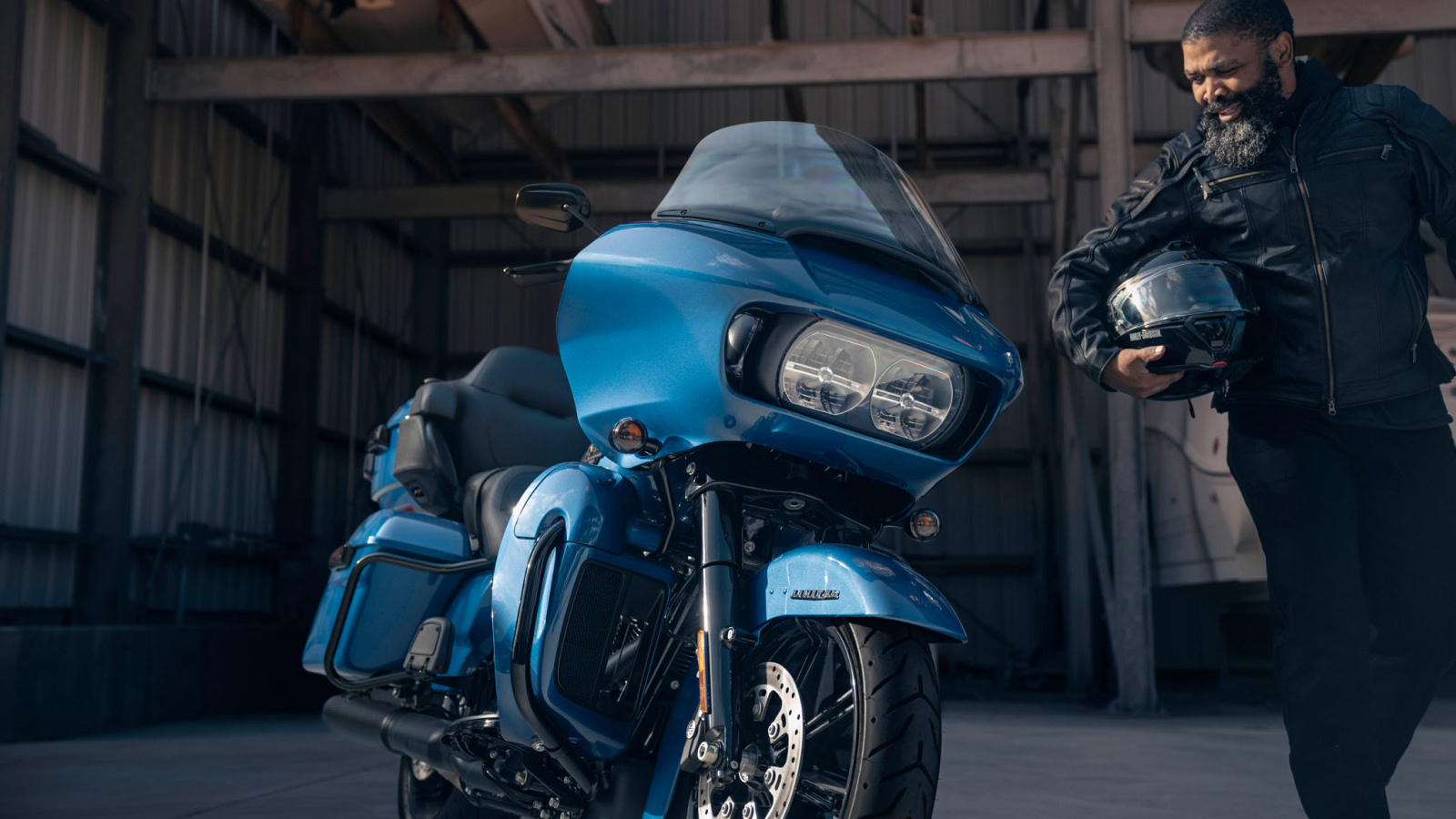

Frame mounted fairing
Infotainment
Rider safety enhancements available
| LENGTH | 2,595 mm |
| SEAT HEIGHT, UNLADEN | 735 mm |
| GROUND CLEARANCE | 130 mm |
| RAKE | 26 |
| TRAIL | 170 mm |
| WHEELBASE | 1,625 mm |
| TYRES, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
| TYRES, FRONT SPECIFICATION | BW 130/70B18 63H |
| TYRES, REAR SPECIFICATION | BW 180/55B18 80H |
| FUEL CAPACITY | 22.7L |
| OIL CAPACITY (W/FILTER) | 4.7L |
| WEIGHT, AS SHIPPED | 407 kg |
| WEIGHT, IN RUNNING ORDER | 423 kg |
| LUGGAGE CAPACITY -VOLUME | 0.132 m3 |

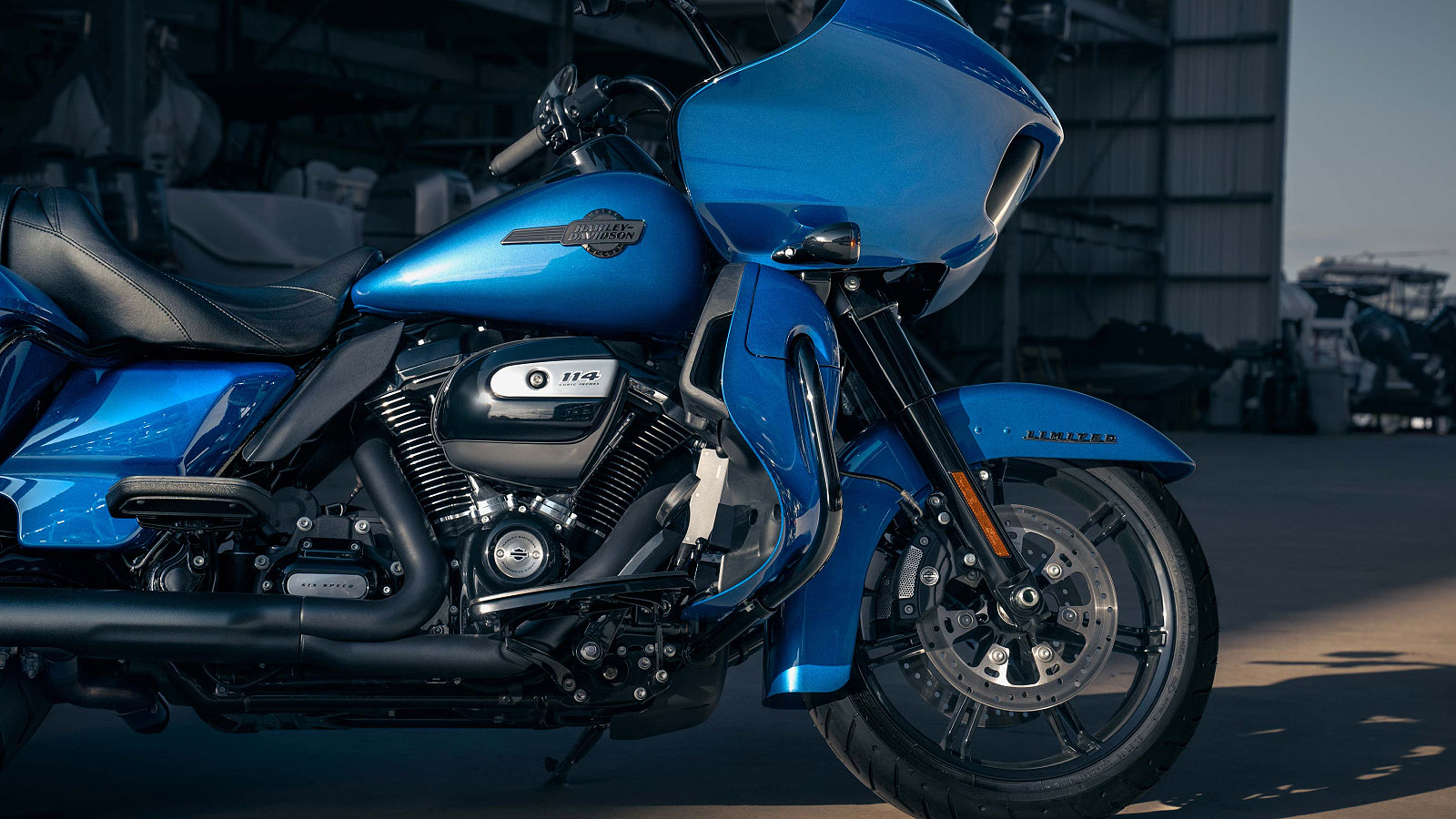

| Engine | Twin-Cooled™ Milwaukee-Eight™ 114 |
| Bore | 102 mm |
| STROKE | 114.3 mm |
| DISPLACEMENT | 1,868 cc |
| COMPRESSION RATIO | 10.5:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2:1:2 dual exhaust with 4 in. tapered mufflers |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
| ENGINE TORQUE\xA03 | 160 Nm |
| ENGINE TORQUE (RPM) | 3000 |
| HORSEPOWER | 87 HP / 65 kW @ 5020 rpm |
| LEAN ANGLE, RIGHT (DEG.) | 32 |
| LEAN ANGLE, LEFT (DEG.) | 32 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 6.3 l/100 km |
| PRIMARY DRIVE | Chain, 34/46 ratio |
| GEAR RATIOS (OVERALL) 1ST | 9.593 |
| GEAR RATIOS (OVERALL) 2ND | 6.65 |
| GEAR RATIOS (OVERALL) 3RD | 4.938 |
| GEAR RATIOS (OVERALL) 4TH | 4 |
| GEAR RATIOS (OVERALL) 5TH | 3.407 |
| GEAR RATIOS (OVERALL) 6TH | 2.875 |
| FRONT FORK | 49 mm Dual Bending Valve |
| REAR SHOCKS | Premium standard height hand-adjustable rear suspension |
| WHEELS, FRONT TYPE\xA04 | Slicer II cast aluminum with clear coat |
| WHEELS, REAR TYPE\xA04 | Slicer II cast aluminum with clear coat |
| BRAKES, CALIPER TYPE | 32 mm, 4-piston fixed front and rear |
| BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |
| LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam; 8W/28W tail/stop, front signal lights; LED rear turn signals |
| GAUGES | Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators. |
| INFOTAINMENT SYSTEM | Boom!™ Box GTS |
| SCREEN SIZE | 165 mm |
| TYPE | Full Color TFT |
| WATTS PER CHANNEL | 25 |
| SPEAKERS | 4 |
| SPEAKER SIZE | 5.25 inch standard |
| AM | Standard |
| FM | Standard |
| SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION | Supported |
| LANGUAGES | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
| HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
| VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
| VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
| RIDER/PASSENGER INTERCOM | Standard (Passenger Headset Sold Separately) |
| VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | Standard |
| TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
| USB | USB/MTP/iPod/iPhone |
| BLUETOOTH | Phone/Media Supported |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
| ELECTRONIC LINKED BRAKING (ELB) | Included |
| VEHICLE HOLD CONTROL (VHC) | Included |
| TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
| CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
